Cabinet Spray Washers

Front Loading / Top Loading Cabinet Spray Washers

Are you manually cleaning your various parts in an old scrub tub? Small automatic spray washers can save your hands, cut down on noise, and save time and money:

  • Place your part on a turntable and let it spin while getting clean.
  • Top-loading machines are perfect for cellular station cleaning in a manufacturing work cell.
  • Small footprint for highly valued floor space.
  • Top loaders from 21″ to 120″ in diameter.
  • Weight capacities from 500 to 5,000 lbs. Multi-stage blow-off. Vertical pumps, filters and sprocket drive systems.
  • 360-degree spray patterns with special manifold and nozzle setup depending on parts to be processed.





















ModelDiameterWork HeightLoadGallons
TL-2121"18"500lbs.32 @ 42psi/24gpm
TL-3131"32"1000lbs.125 @ 52psi/35gpm
TL-4242"36"1500lbs.220 @ 75psi/120gpm
TL-6060"36"1500lbs.32 @ 75psi/200gpm

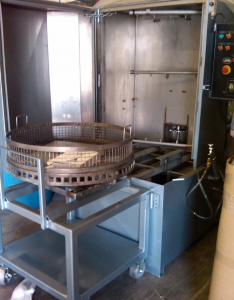

FRONT-LOAD MODEL

cabinet spray washer

The front-load model is perfect for small remanufacturing of engine parts no matter what size your shop is. For larger-sized engines, large housings can remove some of the work greases and oils.

These machines are sized with limited floor space in mind. They are small and compact without sacrificing functionality.

We offer standard configurations along with specialty machines built for a specific part, whether it needs a fixture, increased pump cleaning capacities or to run at higher temperatures for remanufacturing applications.

Rollout turntables are very nice for ease-of-loading and unloading, either manually or via hoist.

Spray patterns at 360 degrees with independent manifolds for each process. Swing away mid-level spray bars can help with lower-height parts and/or adding cleaning.

Standard units are available from 25″ to 120″ in diameter.

ModelDiameterHeightLoadGallons
PCS-313631"36"1000lbs.140 @ 80psi/85gpm
PCS-364236"42"1500lbs.180 @ 80psi/85gpm
PCS-506050"60"1500lbs.330 @ 75psi/200gpm



Lean Clean is a very unique washer built and designed for special bulk or batch cleaning of various parts. Screw machine parts are a great example. This cabinet spray washer’s ability to submerge baskets while simultaneously rotating and spraying them with high-pressure and high-volume cleaning and/or rinsing solutions is very process- and part-oriented for achieving maximum results.

All of these actions can happen at one time or be individually programmed, but the result is the best possible cleaning of complex-shaped parts by penetrating blind holds and cavities. Filtering and oil skimming are always essential for the best process with a continued quality of finish. Ultrasonics provide increased precision and effectiveness.

cabinet spray washer

  • Basket sizes: 12″ x 20″ x 6″
  • 1 to 8 baskets in main carrier
  • Many features and stages of processing available
  • PLC and HMI control interface

Sample part testing is always valuable with processing and machinery verification prior to a purchase to ensure you achieve your expectations and goals.
